160T BOP Handling System

Our BOP handling system, a unique professional plant with API Certificate, is the most early product as a patent for utility models in our country. The device is easy and safe to be operated, mounted and dismounted for wellhead BOP. So far we have supplied more than 500 sets of various devices from 8t~200t model (8T,15T,20T,30T,50T,60T,80T,100T,120T,160T,200T )at home and abroad, and obtained great reputation in the oil field of Middle-east.
We can supply following products according to requirements from Customer:
●BOP Handling System for desert drilling rig, marine drilling rig under the worst ambient.
●BOP Handling System for low temperature resistant drilling rig in polar region.
●BOP Handling System with various series, such as hydraulic oil cylinder series, hydraulic chain series, pneumatic ctrl chain series etc.
●BOP Handling System with API 7K Certificate.

Technical parameter:

1 Max. Lifting Capacity　　　　　2×800=1600kN

2 Max. Lifting Height　　　　　　4m

3 Max. Lifting Speed　　　　　　0～0.6m/min

4 Max. Lowering Speed　　　　　0～1m/min

5 Horizontal Moving Speed　　　　0～6m/min

6 W.P. of Hydraulic System　　　　18MPa

7 Max. Flow Hydraulic System　　　120L/min

8 Wire Line Diameter　　　　　　　Ф44mm

160T Drilling BOP Handling System

1600kN Drilling BOP Handling System

160T bop hoist

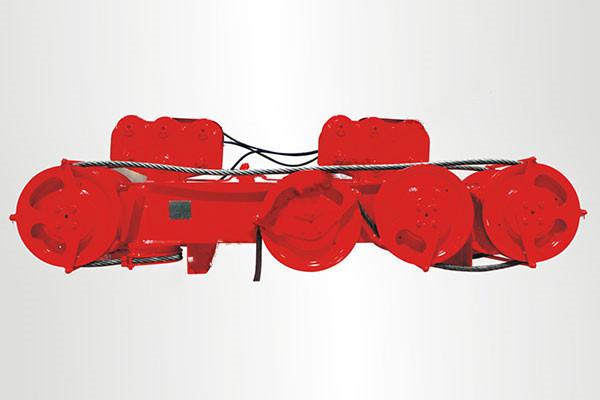

160T Drilling BOP Handling System 1600kN Lifting Capacity Images
